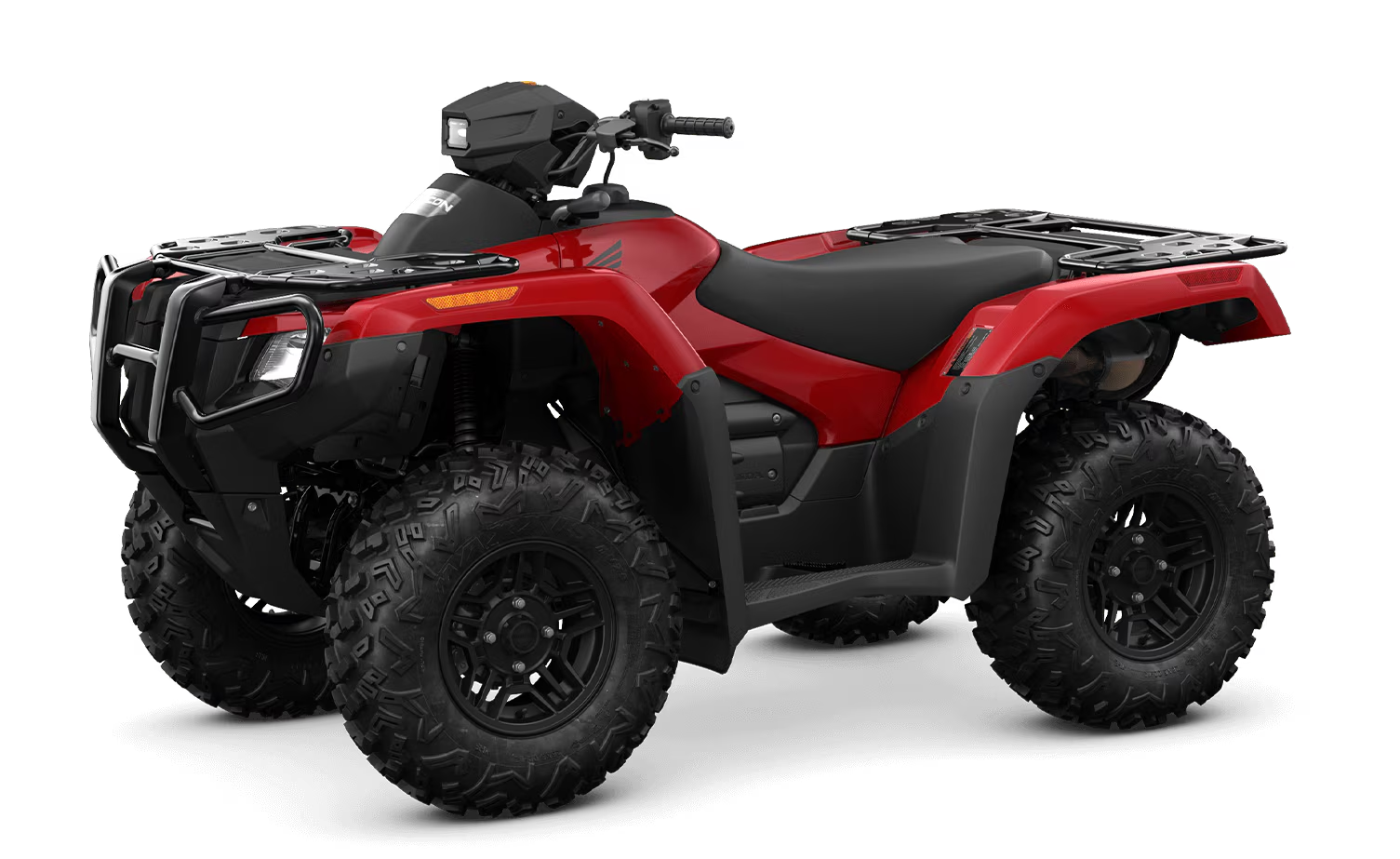

Honda FourTrax Rubicon 700 4x4 Automatic 2025 specs
Honda FourTrax Rubicon 700 4x4 Automatic 2025 specs
Below are some specifications of the Honda FourTrax Rubicon 700 4x4 Automatic 2025 model
ATV Type :
Utility Quad Bikes
Introduction Year :
2006
Engine Spec
Engine Capacity (cc / Ci ) :
675 / 41.2
Engine Valves :
OHV
Valve Configuration :
4-valves
Total Valves :
4
Engine Type :
4-Stroke
Engine Cooling :
Liquid-cooled
Engine Cylinders :
Single-Cylinder
Bore Stroke(mm) :
96.0mm x 75.0mm
Bore Stroke(in) :
3.78in. x 2.95in.
Compression Ratio :
9.2:1
Fuel System :
PGM-FI fuel injection
Fuel Type :
Petrol
Ignition :
CDI Electronic
Brakes
Brakes Front :
Dual hydraulic disc brakes
Front Brake Diameter (mm / in.) :
190 / 7.5
Brakes Rear :
Sealed mechanical drum brake
Suspension
Front Suspension :
Independent double wishbone coil spring oil damped
A-Arm Skid Plate (Front) :
Yes
Suspension - Front Travel (mm / in.) :
254 / 10.0
Front Adjustable Fork Pre-Load :
Yes
Front Adjustable Rebound Damping :
Yes
Suspension Rear :
Independent rear suspension with IRS coil spring oil damped
A-Arm Skid Plate (Rear) :
No
Swing Arm Skid Plate :
No
Rear Travel (mm / in.) :
254 / 10.0
Rear Adjustable Rebound Damping :
Yes
Rear Adjustable Shock Spring Pre-Load :
Yes
Dimensions and Weight
Length (mm / in.) :
2175 / 85.6
Width (mm / in.) :
1194 / 47.0
Height (mm / in.) :
1194 / 47.0
Ground Clearance (mm / in.) :
254 / 10.0
Wheelbase (mm / in.) :
1295 / 51.0
Dry Weight (Kg / Lbs.) :
306 / 675
Transmission (Gearbox) and Final Drive
Transmission :
Automatic DCT 5-speed with reverse
Transmission Make :
Honda
Final Drive :
Shaft
Drive line Modes :
2WD 4WD
Primary Drive Engine / Transmission :
Belt
Primary Drive - Front Wheels :
Shaft
Limited Slip Diff Location :
Front Differential Lock
Diff Lock Location :
Front
Hi / Low Range :
Yes
Reverse :
Yes
Tires and Rims
Tire Make :
Maxxis
Tube / Tubeless :
Tubeless
Tires Front :
26 x 8-14
Front Tire Diameter (in) :
26
Front Tire Width (in) :
8
Front Rim Diameter (in) :
14
Tires Rear :
26 x 11-14
Rear Tire Diameter (in) :
26
Rear Tire Width (in) :
11
Rear Rim Diameter (in) :
14
Rim Material :
Steel
Rear Solid Axle :
No
Fuel
Fuel Tank Capacity (l / gal.) :
17.7 / 4.7
Racks and Payload
Front Rack :
Standard
Rear Rack :
Standard
Storage
Fender Storage Location :
Front
Front Storage Well :
Standard
Rear Storage Well :
Standard
Storage Capacity (Cu. ft) :
0.33
Storage Capacity (gal) :
2.5
Storage Capacity (l) :
9.46
Seats
Seat Height (mm / in.) :
850 / 33.5
Number Of Seats :
1
Seat Location :
Driver
Seat Material :
Vinyl
Seat Type :
One-Piece
Seat Adjustable :
No
Towing
Rear Hitch :
Receiver
Towing Capacity (Kg / Lbs.) :
450 / 992
Instrumentation
Digital Instrumentation :
Standard
Trip Computer :
Standard
Trip Odometer :
Standard
Clock :
Standard
Fuel Level Warning Type :
Gauge
Hour Meter :
Standard
Service Reminder :
Standard
Speedometer :
Standard
Temperature Warning Type :
Light
Lighting
Lighting :
Halogen
Headlights :
Standard
Halogen Headlights :
Standard
Colours
Metallic :
No
Exterior - Safety and Design
Bash Plate (Front) :
Yes
Bash Plate (Rear) :
Yes
Body Material :
Plastic
Brush Guard :
No
CV Boot Cover :
No
Floor Board Location :
Driver
Folding Foot Pegs :
Standard
Frame :
Steel
Front Bumper :
Standard
Front Fender Flairs :
Standard
Front Fender :
Standard
Front Stabilizer Bar :
No
Full Length Skid Plate :
Yes
Hand Grips :
Standard
Light Guard :
No
Radiator Guard :
Yes
Rear Fender :
Standard
Rear Fender Flairs :
Standard
Rear Stabilizer Bar :
Yes
Shock Cover :
No
Snorkel Air Intake :
Standard
Steering
Steering Type :
EPS
Manufacturer and Warranty
Manufacturer Country :
Japan
Recommend Minimum Age :
16
Parent Company :
Honda
Warranty Info :
12-month limited warranty
