2025 Honda TRX 250X specifications of Quad bikes and ATV's in South Africa, Honda TRX specs and ATV pics for Honda TRX 250X 2025.
Quad Bike / ATV Specs

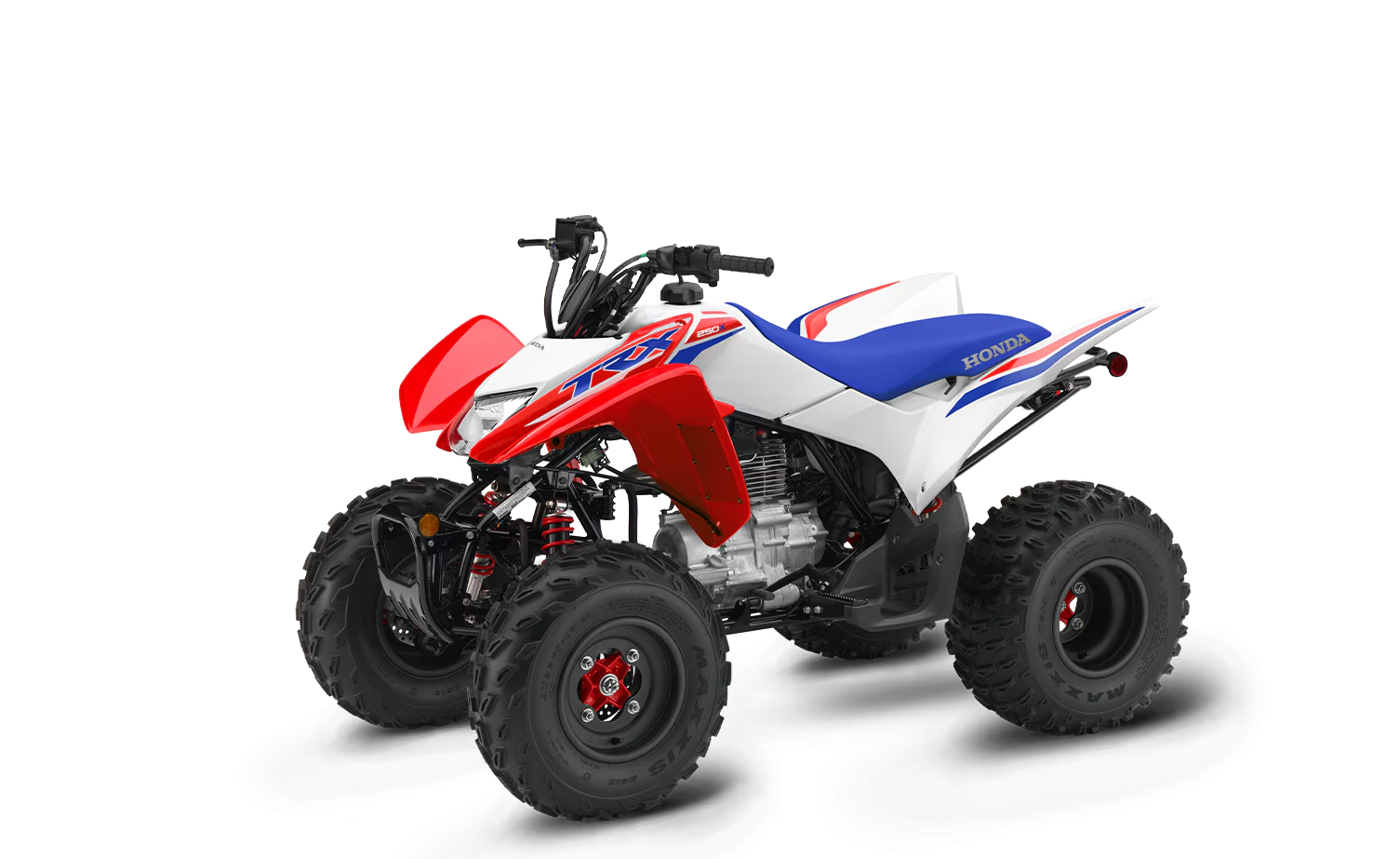

Honda TRX 250X 2025 specs
Honda TRX 250X 2025 specs
Below are some specifications of the Honda TRX 250X 2025 model
ATV Type :
Racing Quad Bikes
Introduction Year :
2006
Engine Spec
Engine Capacity (cc / Ci ) :
249 / 15.2
Engine Valves :
SOHC
Valve Configuration :
4-valves
Total Valves :
4
Engine Type :
4-Stroke
Engine Cooling :
Air-cooled
Engine Cylinders :
Single-Cylinder
Bore Stroke(mm) :
72.0mm x 61.0mm
Bore Stroke(in) :
2.83in. x 2.40in.
Compression Ratio :
9.5:1
Fuel System :
Carburetor
Fuel Type :
Petrol
Ignition :
CDI Electronic
Brakes
Brakes Front :
Single hydraulic disc brake
Front Brake Diameter (mm / in.) :
190 / 7.5
Brakes Rear :
Single hydraulic disc brake
Suspension
Front Suspension :
Independent double A-arm coil spring oil damped
A-Arm Skid Plate (Front) :
Yes
Suspension - Front Travel (mm / in.) :
165 / 6.5
Front Adjustable Fork Pre-Load :
No
Front Adjustable Rebound Damping :
No
Suspension Rear :
Swingarm coil spring oil damped
A-Arm Skid Plate (Rear) :
No
Swing Arm Skid Plate :
No
Rear Travel (mm / in.) :
165 / 6.5
Rear Adjustable Rebound Damping :
No
Rear Adjustable Shock Spring Pre-Load :
No
Dimensions and Weight
Length (mm / in.) :
2060 / 81.1
Width (mm / in.) :
1219 / 48.0
Height (mm / in.) :
1219 / 48.0
Ground Clearance (mm / in.) :
165 / 6.5
Wheelbase (mm / in.) :
1295 / 51.0
Dry Weight (Kg / Lbs.) :
168 / 370
Transmission (Gearbox) and Final Drive
Transmission :
Semi-automatic 5-speed with SportClutch
Transmission Make :
Honda
Final Drive :
Chain
Drive line Modes :
2WD
Primary Drive Engine / Transmission :
Chain
Primary Drive - Front Wheels :
NULL
Limited Slip Diff Location :
NULL
Diff Lock Location :
NULL
Hi / Low Range :
Yes
Reverse :
Yes
Tires and Rims
Tire Make :
Maxxis
Tube / Tubeless :
Tubeless
Tires Front :
24 x 8-12
Front Tire Diameter (in) :
24
Front Tire Width (in) :
8
Front Rim Diameter (in) :
12
Tires Rear :
24 x 9-12
Rear Tire Diameter (in) :
24
Rear Tire Width (in) :
9
Rear Rim Diameter (in) :
12
Rim Material :
Steel
Rear Solid Axle :
No
Fuel
Fuel Tank Capacity (l / gal.) :
Unknown / 8.5 / 2.2
Racks and Payload
Front Rack :
Standard
Rear Rack :
Standard
Storage
Fender Storage Location :
Front
Front Storage Well :
Standard
Rear Storage Well :
Standard
Storage Capacity (Cu. ft) :
0.33
Storage Capacity (gal) :
2.5
Storage Capacity (l) :
9.46
Seats
Seat Height (mm / in.) :
850 / 33.5
Number Of Seats :
1
Seat Location :
Driver
Seat Material :
Vinyl
Seat Type :
One-Piece
Seat Adjustable :
No
Towing
Rear Hitch :
Receiver
Instrumentation
Digital Instrumentation :
Standard
Trip Computer :
Standard
Trip Odometer :
Standard
Clock :
Standard
Fuel Level Warning Type :
Gauge
Hour Meter :
Standard
Service Reminder :
Standard
Speedometer :
Standard
Temperature Warning Type :
Light
Lighting
Lighting :
Halogen
Headlights :
Standard
Halogen Headlights :
Standard
Colours
Metallic :
No
Exterior - Safety and Design
Bash Plate (Front) :
Yes
Bash Plate (Rear) :
Yes
Body Material :
Plastic
Brush Guard :
No
CV Boot Cover :
No
Floor Board Location :
Driver
Folding Foot Pegs :
Standard
Frame :
Steel
Front Bumper :
Standard
Front Fender Flairs :
Standard
Front Fender :
Standard
Front Stabilizer Bar :
No
Full Length Skid Plate :
Yes
Hand Grips :
Standard
Light Guard :
No
Radiator Guard :
Yes
Rear Fender :
Standard
Rear Fender Flairs :
Standard
Rear Stabilizer Bar :
Yes
Shock Cover :
No
Snorkel Air Intake :
Standard
Steering
Steering Type :
Manual
Manufacturer and Warranty
Manufacturer Country :
Japan
Recommend Minimum Age :
16
Parent Company :
Honda
Warranty Info :
12-month limited warranty
