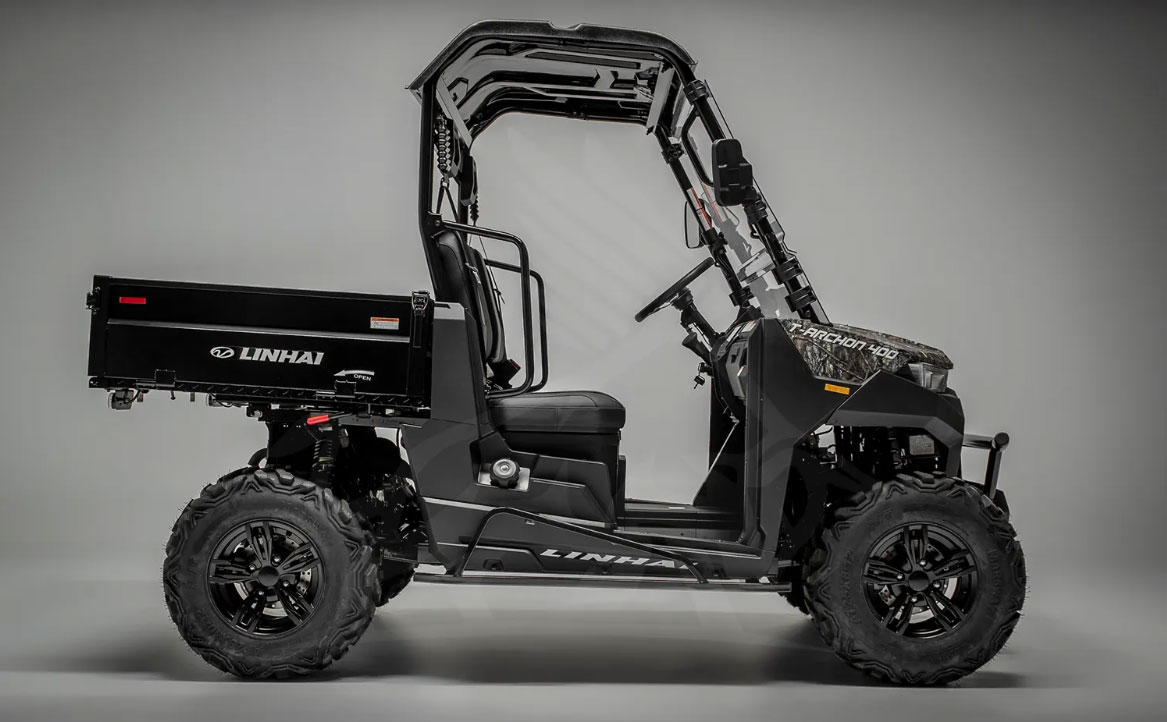

Linhai T-Archon 400 2025 specs
Linhai T-Archon 400 2025 specs
Below are some specifications of the Linhai T-Archon 400 2025 model
ATV Type :
Utility Quad Bikes
Introduction Year :
2007
Engine Spec
Engine Capacity (cc / Ci ) :
386 / 23.6
Engine Valves :
SOHC
Valve Configuration :
4-valves
Total Valves :
4
Engine Type :
4-Stroke
Engine Cooling :
Liquid-cooled
Engine Cylinders :
Single-Cylinder
Bore Stroke(mm) :
85.0mm x 68.0mm
Bore Stroke(in) :
3.35in. x 2.68in.
Compression Ratio :
9.5:1
Fuel System :
Carburetor
Fuel Type :
Petrol
Ignition :
CDI Electronic
Brakes
Brakes Front :
Dual hydraulic disc brakes
Front Brake Diameter (mm / in.) :
190 / 7.5
Brakes Rear :
Sealed mechanical drum brake
Suspension
Front Suspension :
Independent double A-arm coil spring oil damped
A-Arm Skid Plate (Front) :
Yes
Suspension - Front Travel (mm / in.) :
240 / 9.4
Front Adjustable Fork Pre-Load :
No
Front Adjustable Rebound Damping :
No
Suspension Rear :
Swingarm with single shock coil spring oil damped
A-Arm Skid Plate (Rear) :
No
Swing Arm Skid Plate :
No
Rear Travel (mm / in.) :
240 / 9.4
Rear Adjustable Rebound Damping :
No
Rear Adjustable Shock Spring Pre-Load :
No
Dimensions and Weight
Length (mm / in.) :
2000 / 78.7
Width (mm / in.) :
1150 / 45.3
Height (mm / in.) :
1200 / 47.2
Ground Clearance (mm / in.) :
240 / 9.4
Wheelbase (mm / in.) :
1300 / 51.2
Dry Weight (Kg / Lbs.) :
272 / 600
Transmission (Gearbox) and Final Drive
Transmission :
5-speed manual with reverse
Transmission Make :
Linhai
Final Drive :
Shaft
Drive line Modes :
2WD 4WD
Primary Drive Engine / Transmission :
Belt
Primary Drive - Front Wheels :
Shaft
Limited Slip Diff Location :
Front
Diff Lock Location :
Front
Hi / Low Range :
Yes
Reverse :
Yes
Tires and Rims
Tire Make :
Maxxis
Tube / Tubeless :
Tubeless
Tires Front :
25 x 8-12
Front Tire Diameter (in) :
25
Front Tire Width (in) :
8
Front Rim Diameter (in) :
12
Tires Rear :
25 x 10-12
Rear Tire Diameter (in) :
25
Rear Tire Width (in) :
10
Rear Rim Diameter (in) :
12
Rim Material :
Steel
Rear Solid Axle :
No
Fuel
Fuel Tank Capacity (l / gal.) :
10.0 / 2.6
Racks and Payload
Front Rack :
Standard
Rear Rack :
Standard
Storage
Fender Storage Location :
Front
Front Storage Well :
Standard
Rear Storage Well :
Standard
Storage Capacity (Cu. ft) :
0.33
Storage Capacity (gal) :
2.5
Storage Capacity (l) :
9.46
Seats
Seat Height (mm / in.) :
850 / 33.5
Number Of Seats :
1
Seat Location :
Driver
Seat Material :
Vinyl
Seat Type :
One-Piece
Seat Adjustable :
No
Towing
Rear Hitch :
Receiver
Towing Capacity (Kg / Lbs.) :
400 / 882
Instrumentation
Digital Instrumentation :
Standard
Trip Computer :
Standard
Trip Odometer :
Standard
Clock :
Standard
Fuel Level Warning Type :
Gauge
Hour Meter :
Standard
Service Reminder :
Standard
Speedometer :
Standard
Temperature Warning Type :
Light
Lighting
Lighting :
Halogen
Headlights :
Standard
Halogen Headlights :
Standard
Colours
Metallic :
No
Exterior - Safety and Design
Bash Plate (Front) :
Yes
Bash Plate (Rear) :
Yes
Body Material :
Plastic
Brush Guard :
No
CV Boot Cover :
No
Floor Board Location :
Driver
Folding Foot Pegs :
Standard
Frame :
Steel
Front Bumper :
Standard
Front Fender Flairs :
Standard
Front Fender :
Standard
Front Stabilizer Bar :
No
Full Length Skid Plate :
Yes
Hand Grips :
Standard
Light Guard :
No
Radiator Guard :
Yes
Rear Fender :
Standard
Rear Fender Flairs :
Standard
Rear Stabilizer Bar :
Yes
Shock Cover :
No
Snorkel Air Intake :
Standard
Steering
Steering Type :
Manual
Manufacturer and Warranty
Manufacturer Country :
China
Recommend Minimum Age :
16
Parent Company :
Linhai
Warranty Info :
12-month limited warranty
