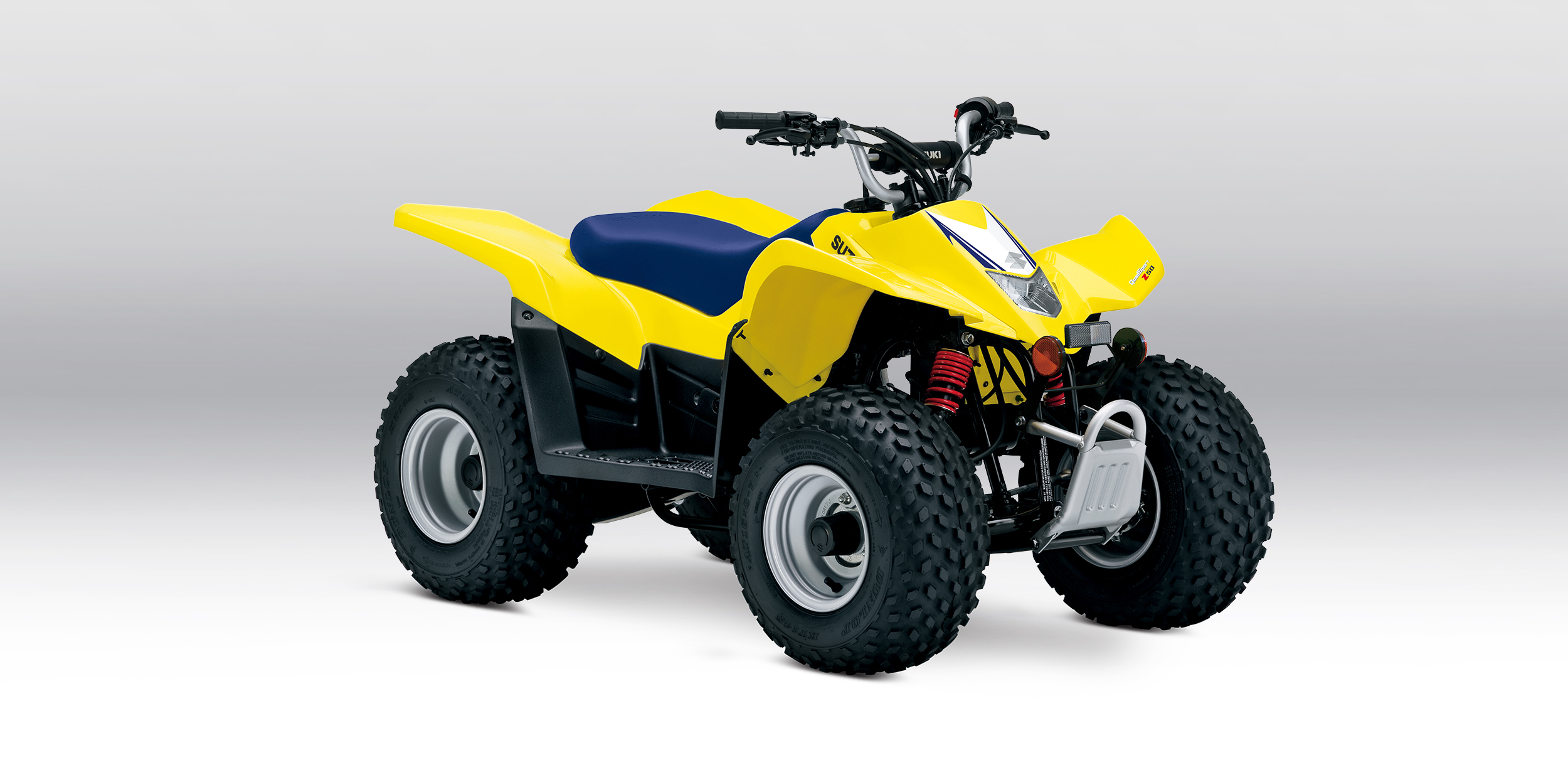

Suzuki QuadSport Z50 2025 specs
Suzuki QuadSport Z50 2025 specs
Below are some specifications of the Suzuki QuadSport Z50 2025 model
ATV Type :
Kids Quad Bikes
Introduction Year :
2006
Engine Spec
Engine Capacity (cc / Ci ) :
49 / 3.0
Engine Valves :
SOHC
Valve Configuration :
4-valves
Total Valves :
4
Engine Type :
4-Stroke
Engine Cooling :
Air-cooled
Engine Cylinders :
Single-Cylinder
Bore Stroke(mm) :
36.0mm x 48.6mm
Bore Stroke(in) :
1.42in. x 1.91in.
Compression Ratio :
8.4:1
Fuel System :
Mikuni VM13 carburetor
Fuel Type :
Petrol
Ignition :
CDI Electronic
Brakes
Brakes Front :
Drum brakes
Brakes Rear :
Drum brake
Suspension
Front Suspension :
Independent swing axle coil spring oil damped
A-Arm Skid Plate (Front) :
Yes
Front Adjustable Fork Pre-Load :
No
Front Adjustable Rebound Damping :
No
Suspension Rear :
Swingarm coil spring oil damped
A-Arm Skid Plate (Rear) :
No
Swing Arm Skid Plate :
No
Rear Adjustable Rebound Damping :
No
Rear Adjustable Shock Spring Pre-Load :
No
Dimensions and Weight
Length (mm / in.) :
1270 / 50.0
Width (mm / in.) :
760 / 29.9
Height (mm / in.) :
765 / 30.1
Ground Clearance (mm / in.) :
120 / 4.7
Wheelbase (mm / in.) :
830 / 32.7
Dry Weight (Kg / Lbs.) :
78 / 171
Transmission (Gearbox) and Final Drive
Transmission :
Automatic V-belt with centrifugal clutch
Transmission Make :
QuadMatic
Final Drive :
Chain
Drive line Modes :
2WD
Primary Drive Engine / Transmission :
Chain
Primary Drive - Front Wheels :
NULL
Limited Slip Diff Location :
NULL
Diff Lock Location :
NULL
Hi / Low Range :
No
Reverse :
No
Tires and Rims
Tire Make :
Dunlop
Tube / Tubeless :
Tubed
Tires Front :
AT16 x 8-7
Front Tire Diameter (in) :
16
Front Tire Width (in) :
8
Front Rim Diameter (in) :
7
Tires Rear :
AT16 x 8-7
Rear Tire Diameter (in) :
16
Rear Tire Width (in) :
8
Rear Rim Diameter (in) :
7
Rim Material :
Steel
Rear Solid Axle :
No
Fuel
Fuel Tank Capacity (l / gal.) :
2.7 / 0.7
Racks and Payload
Front Rack :
Standard
Rear Rack :
Standard
Storage
Fender Storage Location :
Front
Front Storage Well :
Standard
Rear Storage Well :
Standard
Storage Capacity (Cu. ft) :
0.33
Storage Capacity (gal) :
2.5
Storage Capacity (l) :
9.46
Seats
Seat Height (mm / in.) :
535 / 21.1
Number Of Seats :
1
Seat Location :
Driver
Seat Material :
Vinyl
Seat Type :
One-Piece
Seat Adjustable :
No
Instrumentation
Digital Instrumentation :
Standard
Trip Computer :
No
Trip Odometer :
No
Clock :
Standard
Fuel Level Warning Type :
Gauge
Hour Meter :
Standard
Service Reminder :
Standard
Speedometer :
Standard
Temperature Warning Type :
Light
Lighting
Lighting :
Halogen
Headlights :
Standard
Halogen Headlights :
Standard
Colours
Metallic :
No
Exterior - Safety and Design
Bash Plate (Front) :
No
Bash Plate (Rear) :
No
Body Material :
Plastic
Brush Guard :
No
CV Boot Cover :
No
Floor Board Location :
Driver
Folding Foot Pegs :
No
Frame :
Steel
Front Bumper :
Standard
Front Fender Flairs :
Standard
Front Fender :
Standard
Front Stabilizer Bar :
No
Full Length Skid Plate :
No
Hand Grips :
Standard
Light Guard :
No
Radiator Guard :
No
Rear Fender :
Standard
Rear Fender Flairs :
Standard
Rear Stabilizer Bar :
No
Shock Cover :
No
Snorkel Air Intake :
No
Steering
Steering Type :
Manual
Manufacturer and Warranty
Manufacturer Country :
Japan
Recommend Minimum Age :
6
Parent Company :
Suzuki
Warranty Info :
12-month limited warranty
