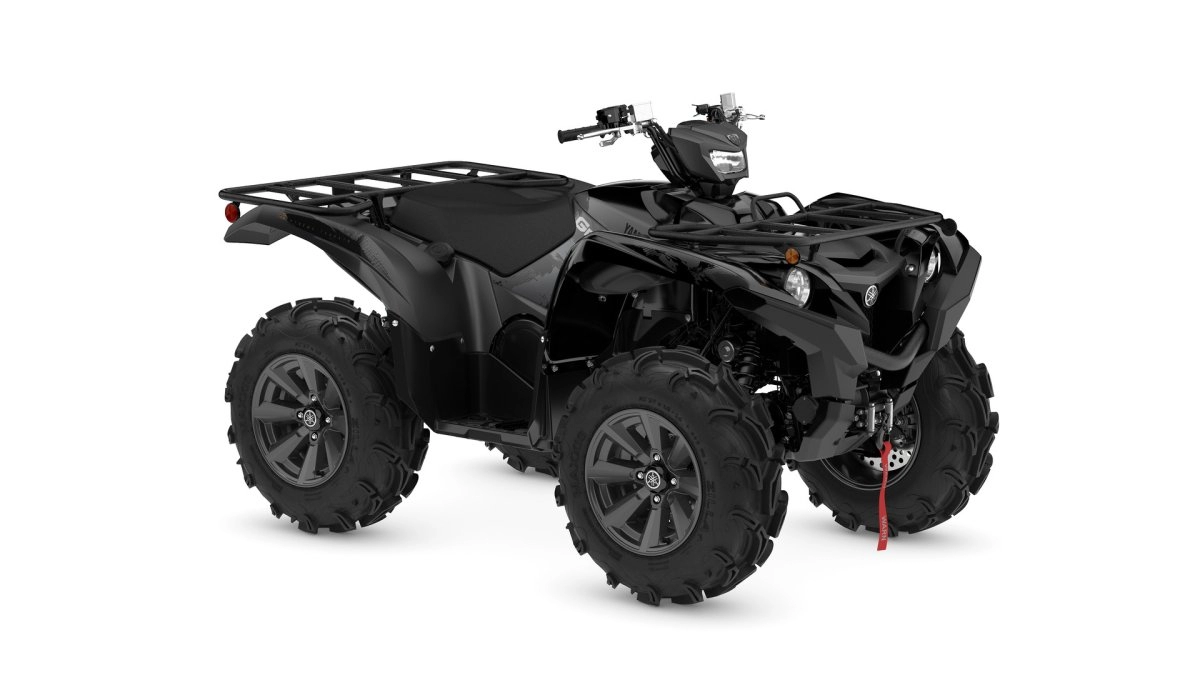

Yamaha Grizzly 700 2025 specs
Yamaha Grizzly 700 2025 specs
Below are some specifications of the Yamaha Grizzly 700 2025 model
ATV Type :
Utility Quad Bikes
Introduction Year :
2007
Engine Spec
Engine Capacity (cc / Ci ) :
686 / 41.9
Engine Valves :
SOHC
Valve Configuration :
4-valves
Total Valves :
4
Engine Type :
4-Stroke
Engine Cooling :
Liquid-cooled
Engine Cylinders :
Single-Cylinder
Engine Braking :
Ultramatic engine braking
Bore Stroke(mm) :
102.0mm x 84.0mm
Bore Stroke(in) :
4.02in. x 3.31in.
Compression Ratio :
10.0:1
Fuel System :
Yamaha Fuel Injection (YFI)
Fuel Type :
Petrol
Ignition :
CDI Electronic
Brakes
Brakes Front :
Dual hydraulic disc brakes
Front Brake Diameter (mm / in.) :
245 / 9.6
Brakes Rear :
Dual hydraulic disc brakes
Suspension
Front Suspension :
Independent double wishbone with anti-sway bar
A-Arm Skid Plate (Front) :
Yes
Suspension - Front Travel (mm / in.) :
193 / 7.6
Front Adjustable Fork Pre-Load :
No
Front Adjustable Rebound Damping :
No
Suspension Rear :
Independent double wishbone with anti-sway bar
A-Arm Skid Plate (Rear) :
No
Swing Arm Skid Plate :
No
Rear Travel (mm / in.) :
231 / 9.1
Rear Adjustable Rebound Damping :
No
Rear Adjustable Shock Spring Pre-Load :
Yes
Dimensions and Weight
Length (mm / in.) :
2070 / 81.5
Width (mm / in.) :
1250 / 49.2
Height (mm / in.) :
1270 / 50.0
Ground Clearance (mm / in.) :
288 / 11.3
Wheelbase (mm / in.) :
1250 / 49.2
Dry Weight (Kg / Lbs.) :
363 / 800
Transmission (Gearbox) and Final Drive
Transmission :
Ultramatic V-belt with all-wheel engine braking H L N R P
Transmission Make :
Yamaha
Final Drive :
Shaft
Drive line Modes :
2WD 4WD Lock
Primary Drive Engine / Transmission :
Belt
Primary Drive - Front Wheels :
Shaft
Limited Slip Diff Location :
On-Command
Diff Lock Location :
Front
Hi / Low Range :
Yes
Reverse :
Yes
Tires and Rims
Tire Make :
Maxxis
Tube / Tubeless :
Tubeless
Tires Front :
27 x 10-14
Front Tire Diameter (in) :
27
Front Tire Width (in) :
10
Front Rim Diameter (in) :
14
Tires Rear :
27 x 10-14
Rear Tire Diameter (in) :
27
Rear Tire Width (in) :
10
Rear Rim Diameter (in) :
14
Rim Material :
Steel
Rear Solid Axle :
No
Fuel
Fuel Tank Capacity (l / gal.) :
18.2 / 4.8
Racks and Payload
Front Rack :
Standard
Rear Rack :
Standard
Storage
Fender Storage Location :
Front
Front Storage Well :
Standard
Rear Storage Well :
Standard
Storage Capacity (Cu. ft) :
0.33
Storage Capacity (gal) :
2.5
Storage Capacity (l) :
9.46
Seats
Seat Height (mm / in.) :
920 / 36.2
Number Of Seats :
1
Seat Location :
Driver
Seat Material :
Vinyl
Seat Type :
One-Piece
Seat Adjustable :
No
Towing
Rear Hitch :
Receiver
Towing Capacity (Kg / Lbs.) :
600 / 1323
Instrumentation
Digital Instrumentation :
Standard
Trip Computer :
Standard
Trip Odometer :
Standard
Clock :
Standard
Fuel Level Warning Type :
Gauge
Hour Meter :
Standard
Service Reminder :
Standard
Speedometer :
Standard
Temperature Warning Type :
Light
Lighting
Lighting :
Halogen
Headlights :
Standard
Halogen Headlights :
Standard
Colours
Metallic :
No
Exterior - Safety and Design
Bash Plate (Front) :
Yes
Bash Plate (Rear) :
Yes
Body Material :
Plastic
Brush Guard :
No
CV Boot Cover :
No
Floor Board Location :
Driver
Folding Foot Pegs :
Standard
Frame :
Steel
Front Bumper :
Standard
Front Fender Flairs :
Standard
Front Fender :
Standard
Front Stabilizer Bar :
No
Full Length Skid Plate :
Yes
Hand Grips :
Standard
Light Guard :
No
Radiator Guard :
Yes
Rear Fender :
Standard
Rear Fender Flairs :
Standard
Rear Stabilizer Bar :
Yes
Shock Cover :
No
Snorkel Air Intake :
Standard
Steering
Steering Type :
EPS
Manufacturer and Warranty
Manufacturer Country :
Japan
Recommend Minimum Age :
16
Parent Company :
Yamaha
Warranty Info :
12-month limited warranty
